WR1100

WRAPPERS

Call for Pricing

Extended Warranty

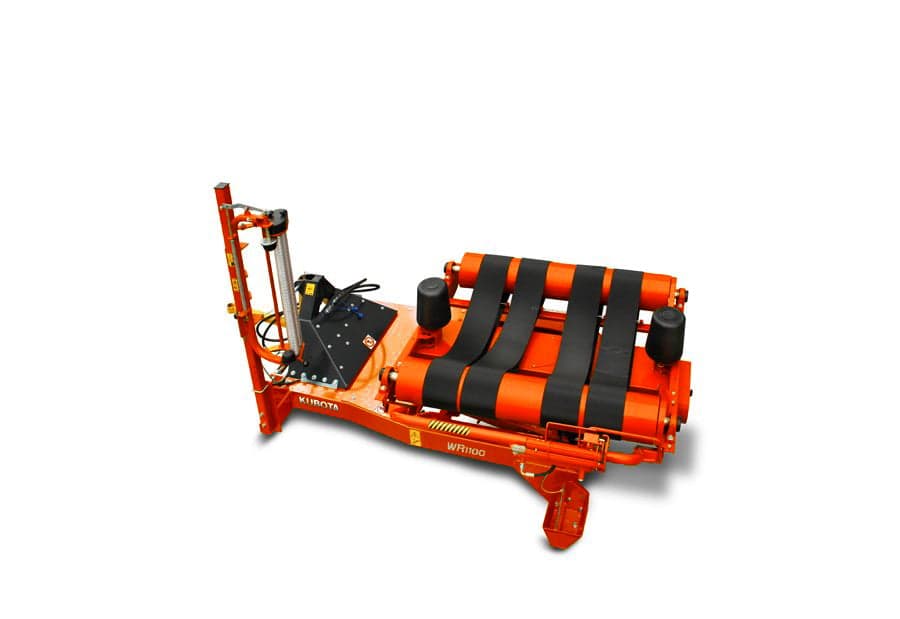

Protect your investment of quality forage harvesting with Kubota's WR1100C computer-controlled automatic bale wrapper. Equipped with a hydraulic film cutter and three-point mounted turntable wrapper, this model handles round bales up to 2,650 pounds and 47" X 50" in size. This wrapper has several features to increase its productivity such as being computer controlled, and it offers additional support legs for free-standing wrapping. Use the WR1100C for ideal storage site wrapping!



Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate
  • WRAPPER SERIES

    Up to 0% A.P.R. for 48 Months on your new Kubota WR Series!

    WRAPPER SERIES
Wrapping at Storage Site

Wrapping at Storage Site

Kubota WR1100 series are three-point mounted wrappers with a simple but very reliable way of wrapping silage bales. When the bale is being transported to the storage site for wrapping, this three-point mounted version is the ideal solution. It can be mounted on the rear or front hydraulics of the tractor or used as a static machine with an external power pack unit.

Easy Operation

Easy Operation

The entire wrapping process of the Kubota WR1100 can be controlled remotely from the loading tractor with the optional remote control. One operator can do the entire process of loading, wrapping and stacking. Once the wrapping process is activated with the push of a button, the whole operation runs automatically. Push the button again to unload the wrapped bale. An optional automatic stop ensures that the bale is properly wrapped.

Remote Control

Remote Control

The Kubota WR1100 is operated via computer controls with an integrated bale counter. A remote control is available as an option, making it the ideal solution for static use.

WR1100

WR1100

HP

Call for Pricing

Specifications

1 Pre- Stretcher 750mm

Standard

Adapter Kit For 20" (500mm) Film Spool

Optional

Auto- Stop At End Of Wrapping Cycle

Standard

Automatic Film Cutter

Standard

Bale And Wrap Counter

Standard

Electro Hydraulic Joystick ( J)

Not Available

Fill Roll Magazine

Not Available

Film End/ Tear Sensor ( C)

Optional

Manual Cable Control ( M)

Not Available

Max Bale Size ( L X D) In.

47" x 50"

Max Bale Weight Lbs.

2650

Max. Wrapping Speed Rpm.

30

Mounted Wrapper

Standard

Oil Consumption (l/min)

28

Pre- Stretcher 29.5" (750mm)

Standard

Programmable Computer ( C)

Standard

Pull- Type Wrapper

Not Available

Remote Control ( C)

Optional

Road Lights

Not Available

Support Rollers/ Belts (number)

2/4

Transport Height In.

69"

Transport Length Ft.

9'

Transport Width Ft.

5.25'

Weight Lbs. (kg)

1653

Wheels And Axles | 10.0/80-12

Not Available
