BV5200RN
BALERS
Call for Pricing

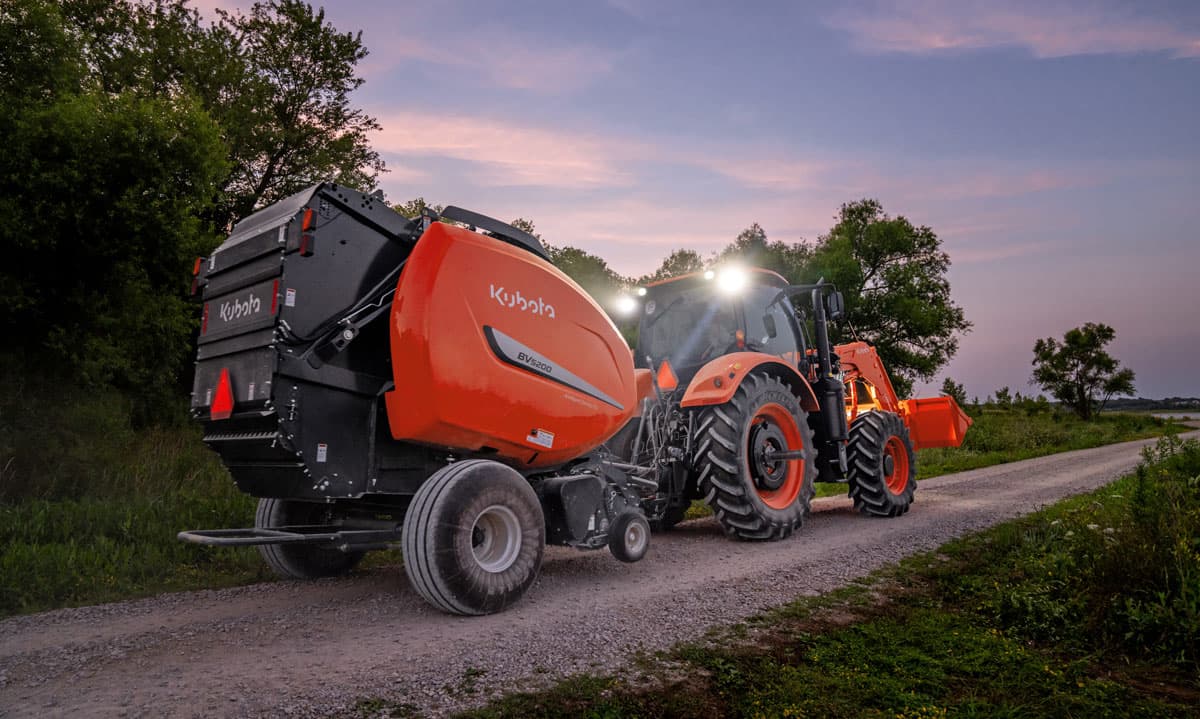

Your hay and silage deserve the best and that’s why the Kubota BV5200RN is designed to produce the best 4x6 bales in the market. With its five endless belts and three crop rollers, this baler is efficient and high capacity. Net wrap binding leaves you with no loose bales and with both a hydraulic pickup lift and a hydraulic drop floor unblocking system, you’ll move from bale to bale with the speed you’ve been searching for, an 88” wider working width, and less wear and tear… it’s time to get to work and with standard features like auto chain oilers, ISOBUS capability, and optional moisture sensor the BV5200RN is raring to go!
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
Up to 0% A.P.R. for 48 Months plus $2,500 Loyalty Cash* on your new Kubota BV Series!
BALER SERIES
Twine Tying
Automatic twine tying with the fast acting double tube system means simultaneous binding of both edges of the bale, keeping binding time to a minimum. Over crossing of twines in the center of the bale provides no loose ends at the end of the binding cycle.
PowerBind Net Wrap
These balers come with Kubota's patented PowerBind net wrap system. This technology has allowed Kubota to get away from the old feed rollers and eliminate many high wear items. The net is fed directly into the bale chambers by injection plates. This design keeps the net tight at all times, which provides accurate and extremely reliable net injection. In addition, the PowerBind net system is extremely simple with a very low loading height (no tools required).
High Performance Pick-Up and Intake
On Kubota's BV5200, the load on the tine bars is minimized by using two intermediate supports and two separate cam tracks located at either end of the pick-up. Slip clutch protection comes standard. A roller wind guard is fitted on rotor intake models which pre-compresses the crop, further boosting intake performance. The working width on the BV5200 is 86".
SuperCut-14 Knife Rotor (SC-14 Model)
The SuperCut-14 version of BV5160 is the ideal solution for silage applications. The 14 knife chopping system provides a fast and efficient flow into the baler. With a chopping length of 2.75" it is the ideal solution for producing dense and airtight bales. Also, the bale is easier to break up during the feeding process.
Specifications
1 1/4" Main Drive Chain
1 Main Chain
Bale Formation
Bale Height In.
Bale Ramp
Bale Width In.
Binding
Cam Clutch Protection
Diameter Max In.
Diameter Min In.
Endless Belts
Flare To Flare Pickup
Focus Terminal
Fork Feeder
Height In.
Hydraulic Outlets
I S O B U S
Iso Match Tellus
Length In.
Lift
Minimum P T O Horsepower Required H P/ K W
Monitor
Number Of Tine Rows
P T O Protection
P T O Rpm
Pickup Protection
Pneumatic Gauge Wheel
Protection, Cam Clutch
Shear Bolt Protection
Tine Spacing In.
Unblocking System
Weight Lbs. (kg)
Wheels And Axles | 11.5/80-15
Wheels And Axles | 15.0/55-17
Wheels And Axles | 19.0/45-17
Wheels And Axles | 500/45-22.5
Wide Angle P T O Shaft
Width In.
Windguard
Working Width In.
1 1/4" Main Drive Chain
Standard
1 Main Chain
1.25"
Bale Formation
5 Belts + 3 Rollers
Bale Height In.
60"
Bale Ramp
Standard
Bale Width In.
47"
Binding
Net Only
Cam Clutch Protection
Standard
Diameter Max In.
79"
Diameter Min In.
24"
Endless Belts
Standard
Flare To Flare Pickup
86"
Focus Terminal
Standard
Fork Feeder
N/A
Height In.
111"
Hydraulic Outlets
1SA + 1DA
I S O B U S
Standard
Iso Match Tellus
Optional
Length In.
187"
Lift
Hydraulic
Minimum P T O Horsepower Required H P/ K W
70
Monitor
TellusGO/IsoMatch
Number Of Tine Rows
5
P T O Protection
CamClutch
P T O Rpm
540CV
Pickup Protection
Radial Clutch
Pneumatic Gauge Wheel
Standard
Protection, Cam Clutch
N/A
Shear Bolt Protection
N/A
Tine Spacing In.
2.36"
Unblocking System
Hydraulic Drop floor
Weight Lbs. (kg)
7275
Wheels And Axles | 11.5/80-15
N/A
Wheels And Axles | 15.0/55-17
Standard
Wheels And Axles | 19.0/45-17
Optional
Wheels And Axles | 500/45-22.5
Optional
Wide Angle P T O Shaft
Standard
Width In.
99"
Windguard
Roller wind guard
Working Width In.
86"
